Summary

Shows how a single object behaves across many cases.

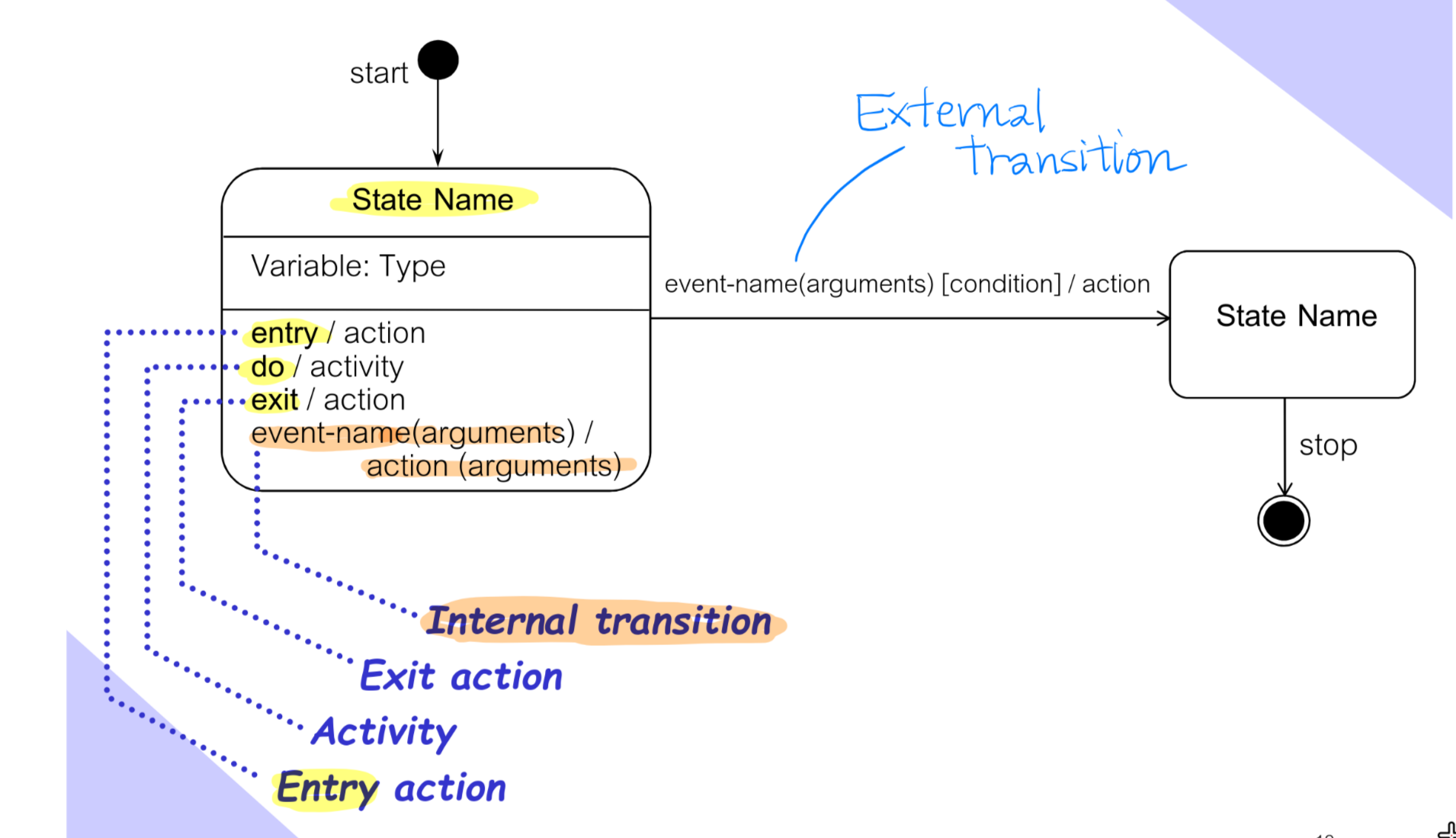

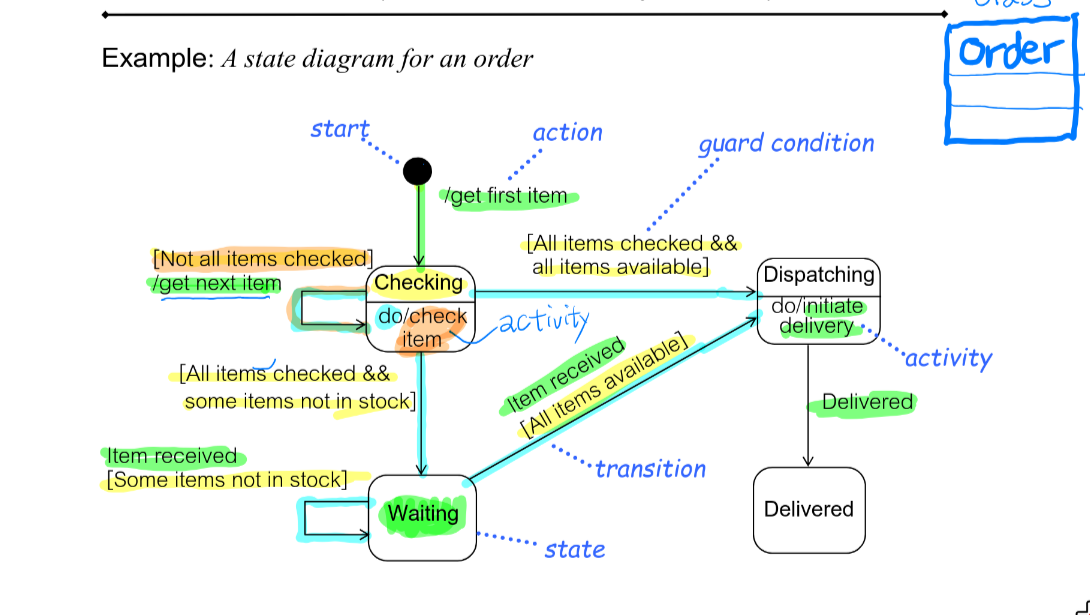

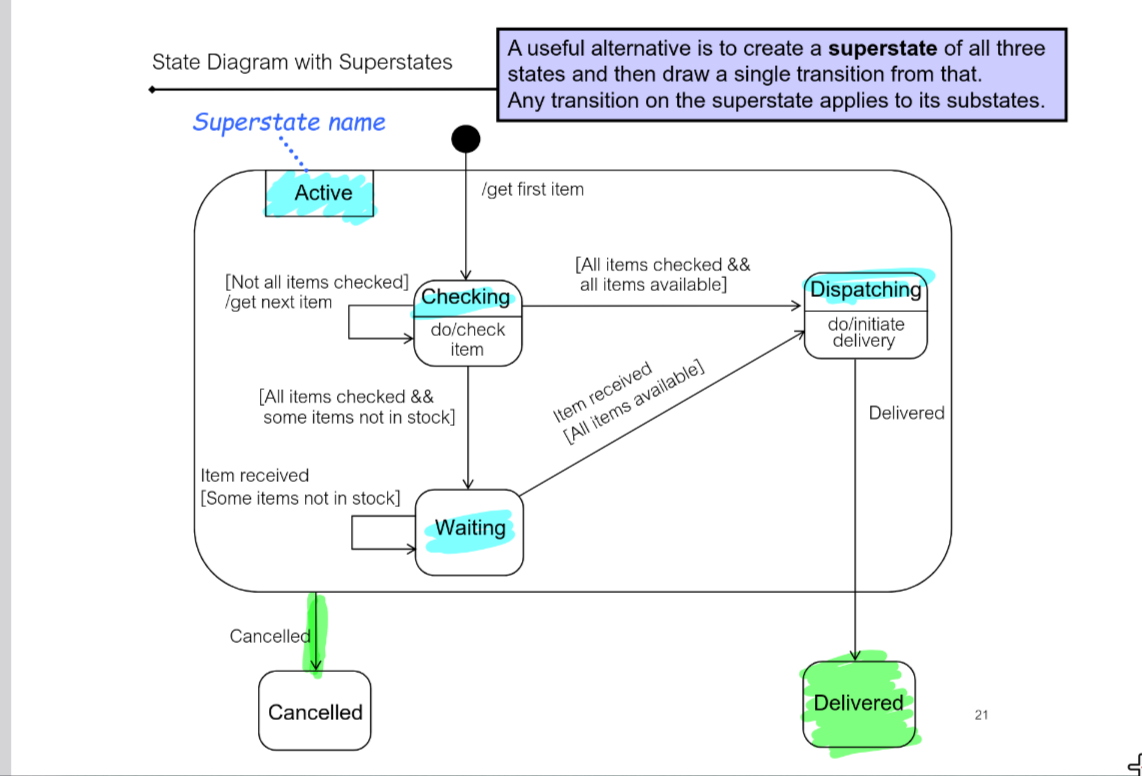

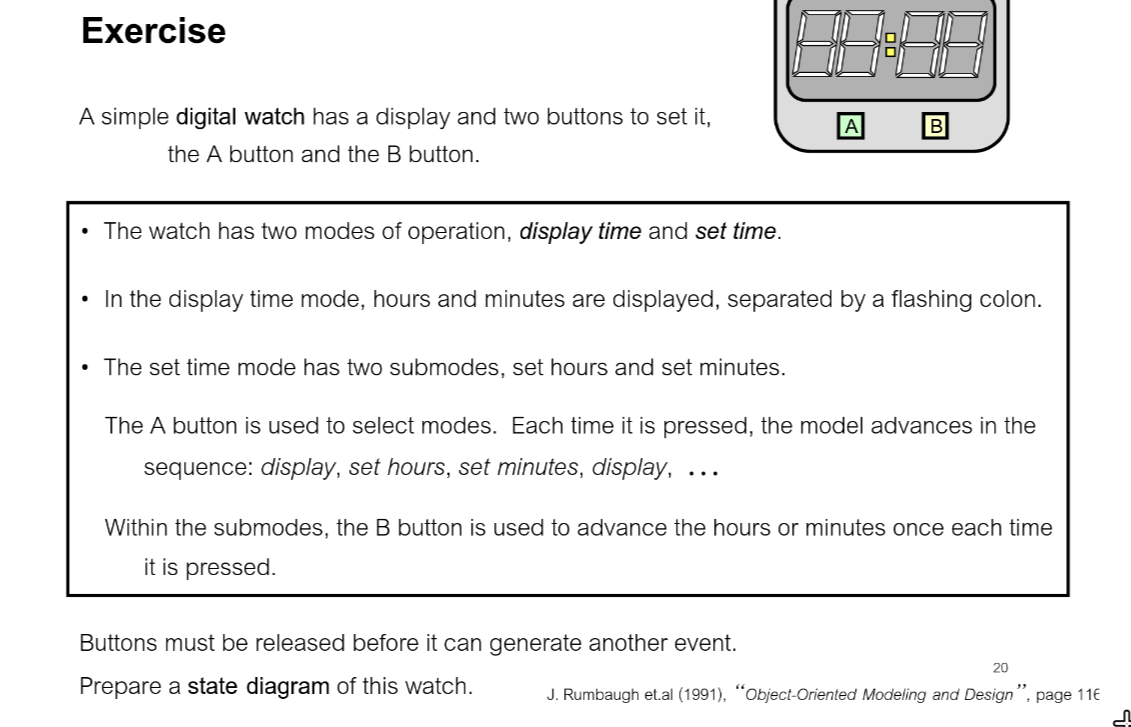

State Diagram

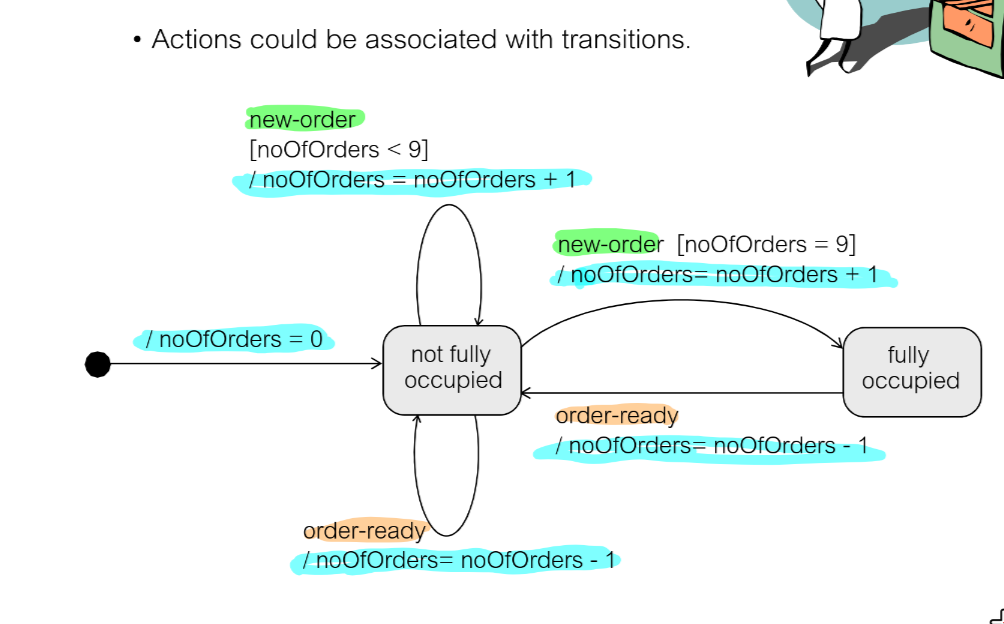

• Syntax for a transition label is: state1 event [guard] / action state2
• Not all events cause state transition, some events are ignored in some states.

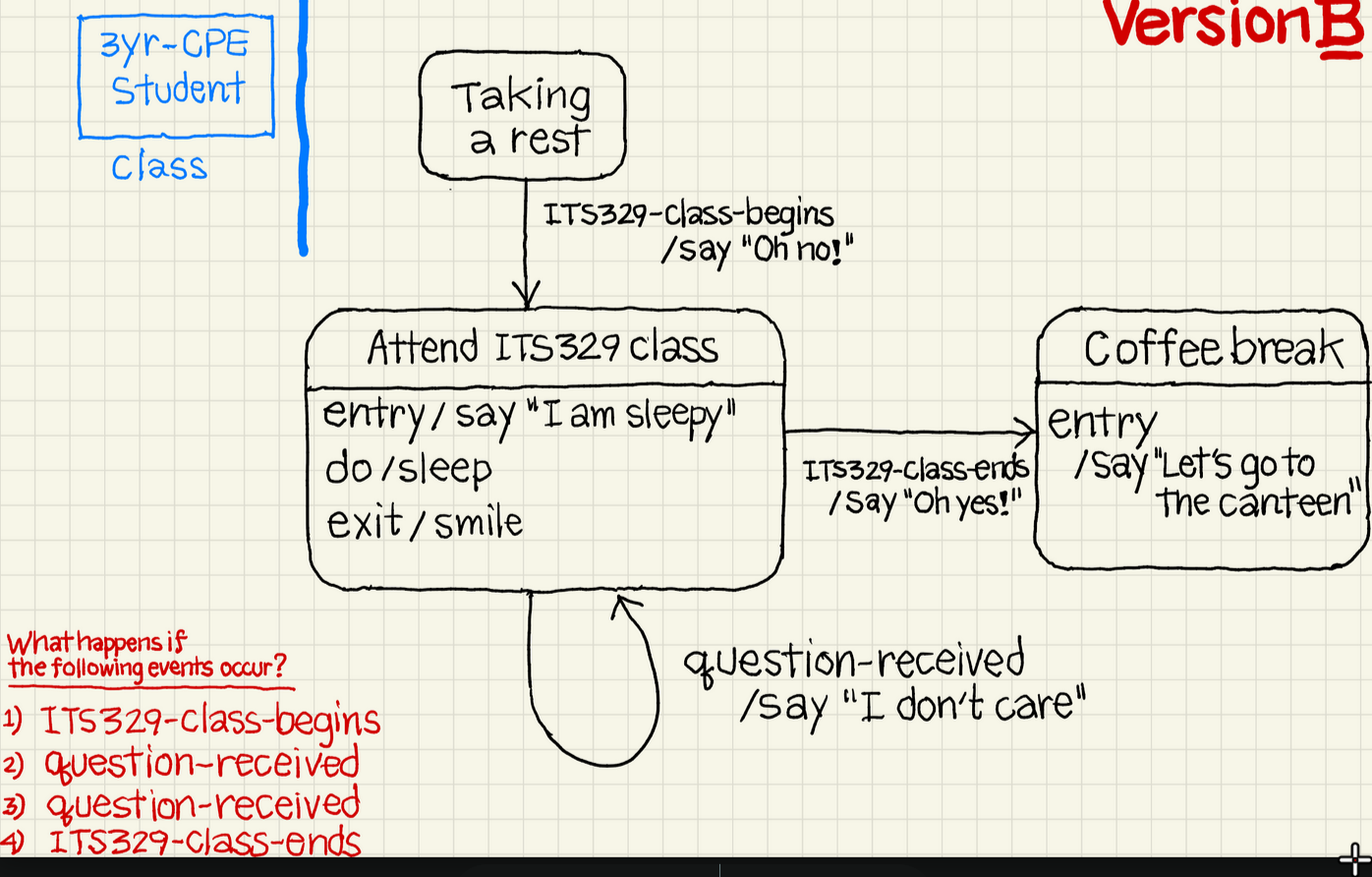

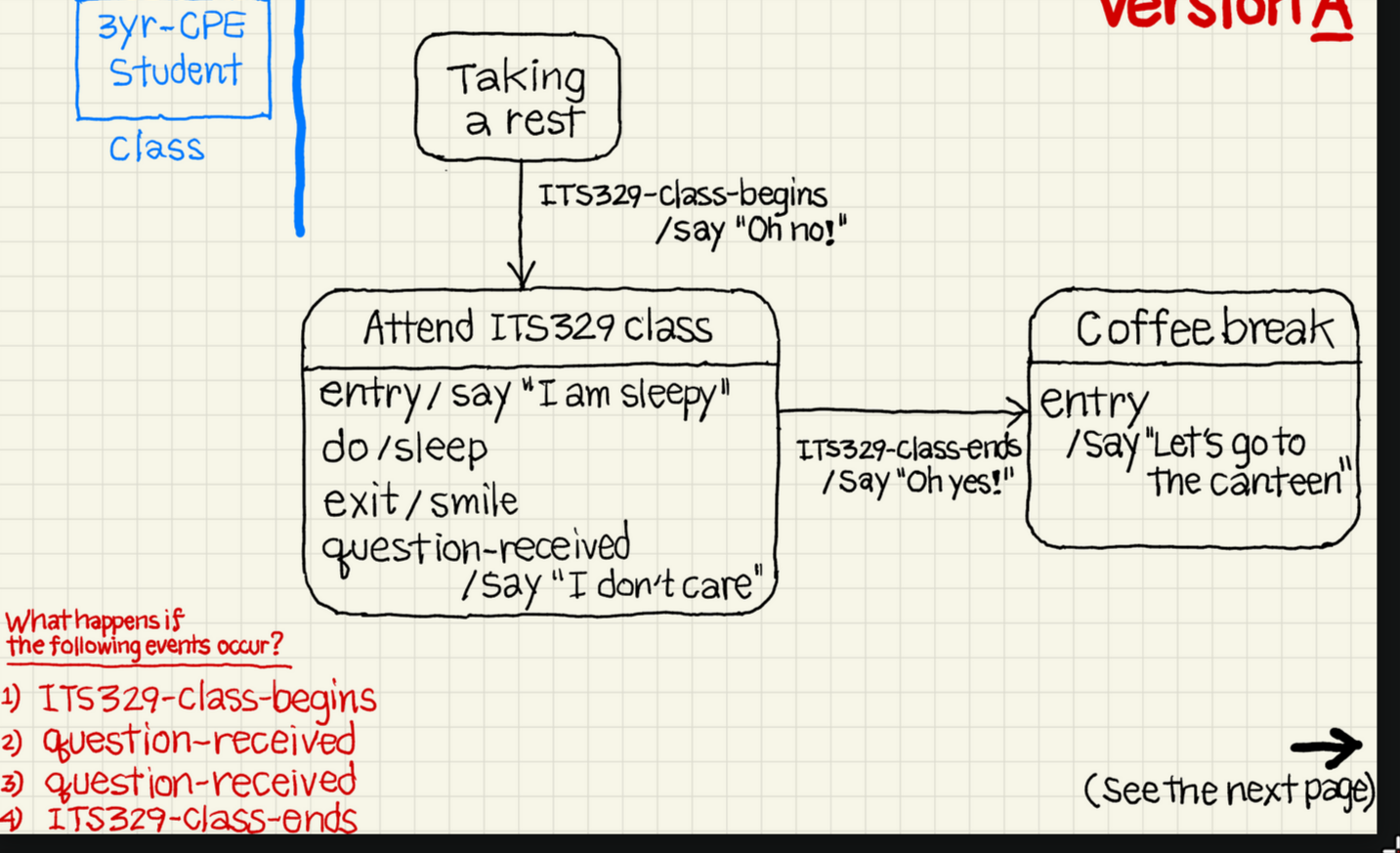

Internal Transition

Not the same with Self-transition

When trigger question-received in self-transition, the state will exit and re-entry again, trigger both exit action and entry action.

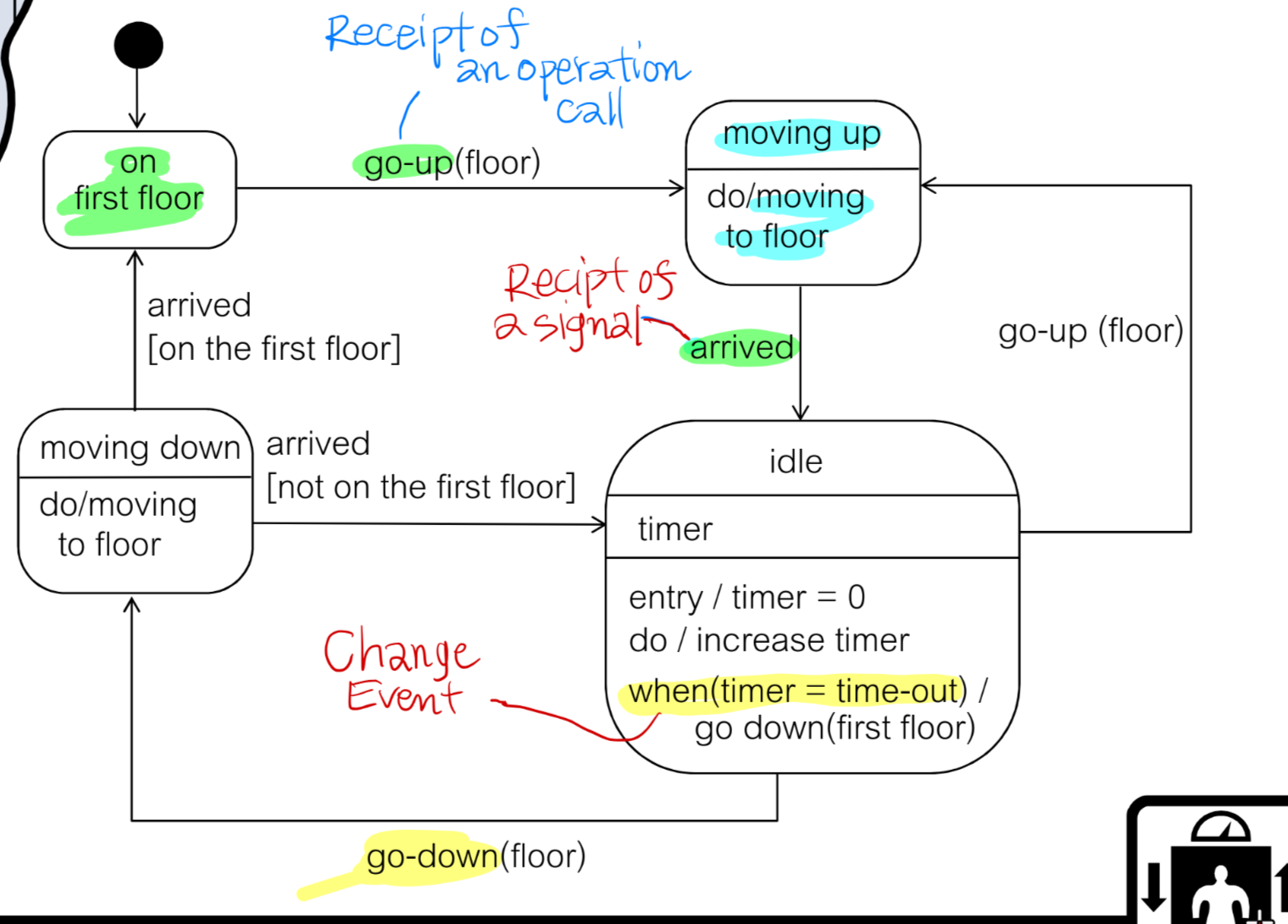

Events

• CallEvent: an event that occurs when an operation is called.
  • go-up(floor)
  • go-down(floor)
• SignalEvent: an event that occurs when a signal is received.
  • floor-reached(floor)
• ChangeEvent: an event that occurs when a condition becomes true.
  • when(...)
• TimeEvent: an event that occurs at a specific time or after a certain duration.
  • after(...)

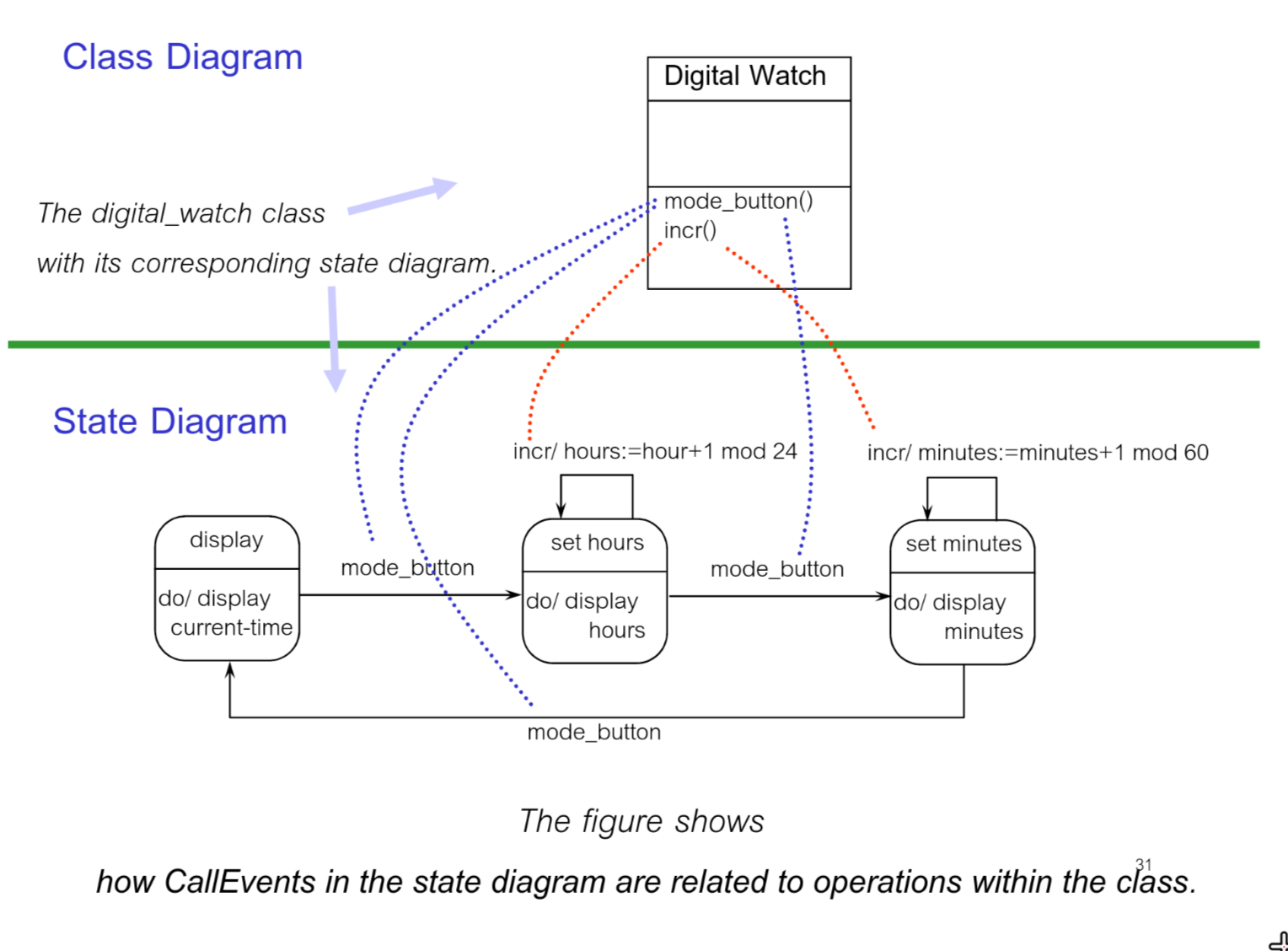

Convert to Class Diagram
